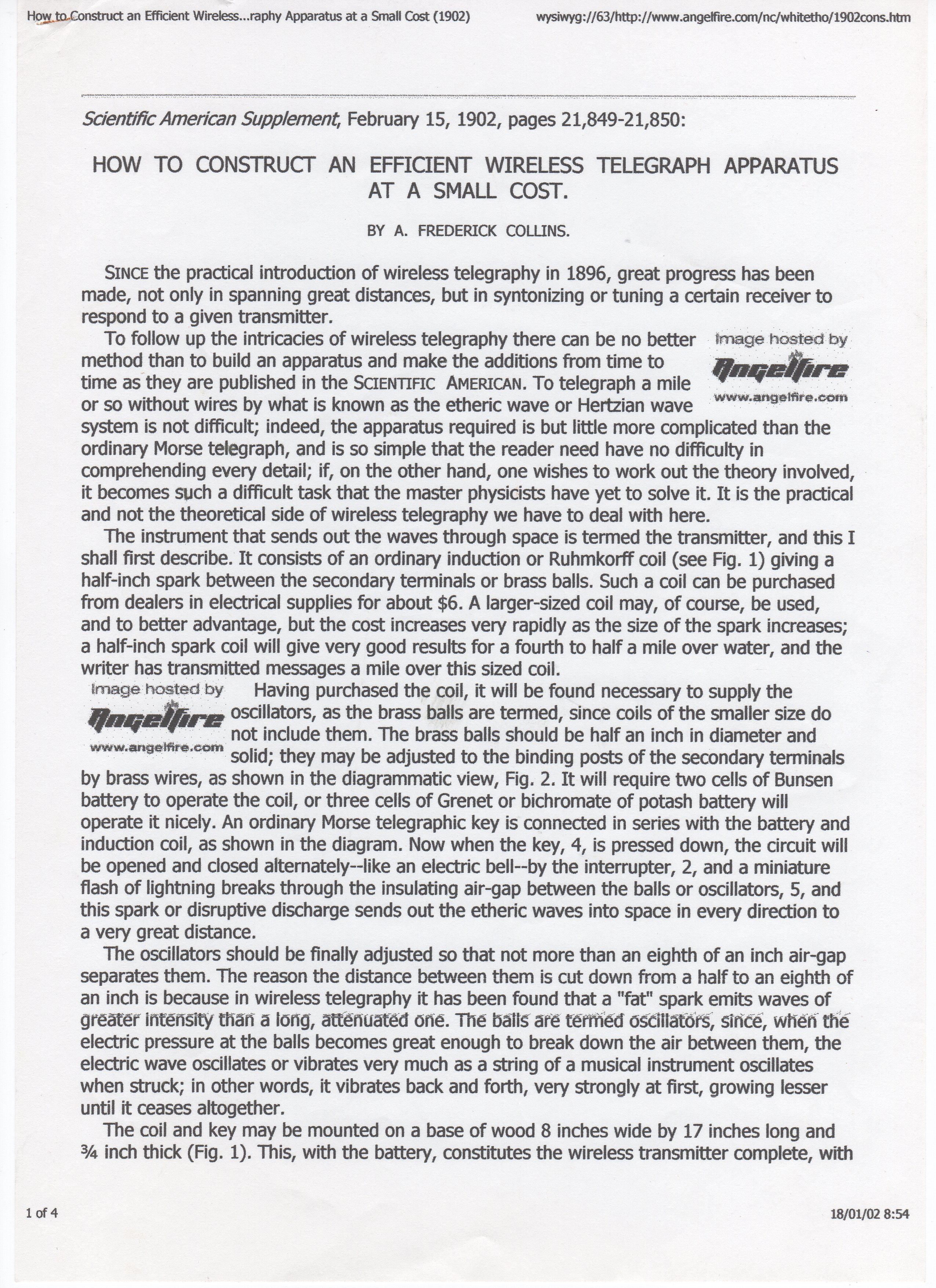

How. to.Construct an Efficient Wireless...raphy Apparatus at a Small Cost (1902) wysiwyg://63/http://www.angelfire.com/nc/whitetho/1902cons.htm Scientific American Supplement, February 15, 1902, pages 21,849-21,850: HOW TO CONSTRUCT AN EFFICIENT WIRELESS TELEGRAPH APPARATUS AT A SMALL COST. BY A. FREDERICK COLLINS. SINCE the practical introduction of wireless telegraphy in 1896, great progress has been made, not only in spanning great distances, but in syntonizing or tuning a certain receiver to respond to a given transmitter. < To follow up the intricacies of wireless telegraphy there can be no better image hosted by method than to build an apparatus and make the additions from time to Gang , ) time as they are published in the SCIENTIFIC AMERICAN. To telegraph a mile or so without wires by what is known as the etheric wave or Hertzian wave system is not difficult; indeed, the apparatus required is but little more complicated than the ordinary Morse telegraph, and is so simple that the reader need have no difficulty in comprehending every detail; if, on the other hand, one wishes to work out the theory involved, it becomes such a difficult task that the master physicists have yet to solve it. It is the practical and not the theoretical side of wireless telegraphy we have to deal with here. The instrument that sends out the waves through space is termed the transmitter, and this I shall first describe. It consists of an ordinary induction or Ruhmkorff coil (see Fig. 1) giving a half-inch spark between the secondary terminals or brass balls. Such a coil can be purchased from dealers in electrical supplies for about $6. A larger-sized coil may, of course, be used, and to better advantage, but the cost increases very rapidly as the size of the spark increases; a half-inch spark coil will give very good results for a fourth to half a mile over water, and the writer has transmitted messages a mile over this sized coil. image hoates by Having purchased the coil, it will be found necessary to supply the ' oscillators, as the brass balls are termed, since coils of the smaller size do not include them. The brass balls should be half an inch in diameter and solid; they may be adjusted to the binding posts of the secondary terminals by brass wires, as shown in the diagrammatic view, Fig. 2. It will require two cells of Bunsen battery to operate the coil, or three cells of Grenet or bichromate of potash battery will operate it nicely. An ordinary Morse telegraphic key is connected in series with the battery and induction coil, as shown in the diagram. Now when the key, 4, is pressed down, the circuit will be opened and closed alternately--like an electric bell--by the interrupter, 2, and a miniature flash of lightning breaks through the insulating air-gap between the balls or oscillators, 5, and this spark or disruptive discharge sends out the etheric waves into space in every direction to a very great distance. The oscillators should be finally adjusted so that not more than an eighth of an inch air-gap separates them. The reason the distance between them is cut down from a half to an eighth of an inch is because in wireless telegraphy it has been found that a “fat spark emits waves of | gréatér intensity than a long, attenuatéd orié. The balls aré téeriiéd oscillators, siricé, wtién the electric pressure at the balls becomes great enough to break down the air between them, the electric wave oscillates or vibrates very much as a string of a musical instrument oscillates when struck; in other words, it vibrates back and forth, very strongly at first, growing lesser until it ceases altogether. The coil and key may be mounted on a base of wood 8 inches wide by 17 inches long and % inch thick (Fig. 1). This, with the battery, constitutes the wireless transmitter complete, with www.angelfire.com www-.angelfire.com lof 4 18/01/02 8:54
